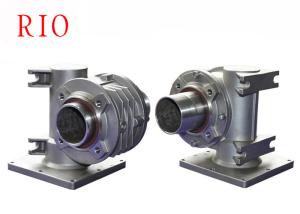

Ss304 DN50 Pinion Worm Reducer gearbox

Brand Name : RIO

Model Number : DN50

Place of Origin : CHINA

MOQ : 1 pcs

Price : Deliberation

Payment Terms : T/T

Supply Ability : 1000 pcs

Delivery Time : 7-15 work days

Packaging Details : Carton packaging

Name : DN50

Type : Worm Drive Reduction Gearbox

Keyword : Worm Gear Reducers

Box technology : Silica sol casting

Worm material : 20CrMn

Worm technology : carburization

Worm hardness : HRC 58-62

Worm wheel material : Stainless steel wheel core wrapped with 10-1 tin bronze

Input speed : 1400 turn

Defects Liability Period : 12 months

Case shell material : 304 stainless steel

Contact Now

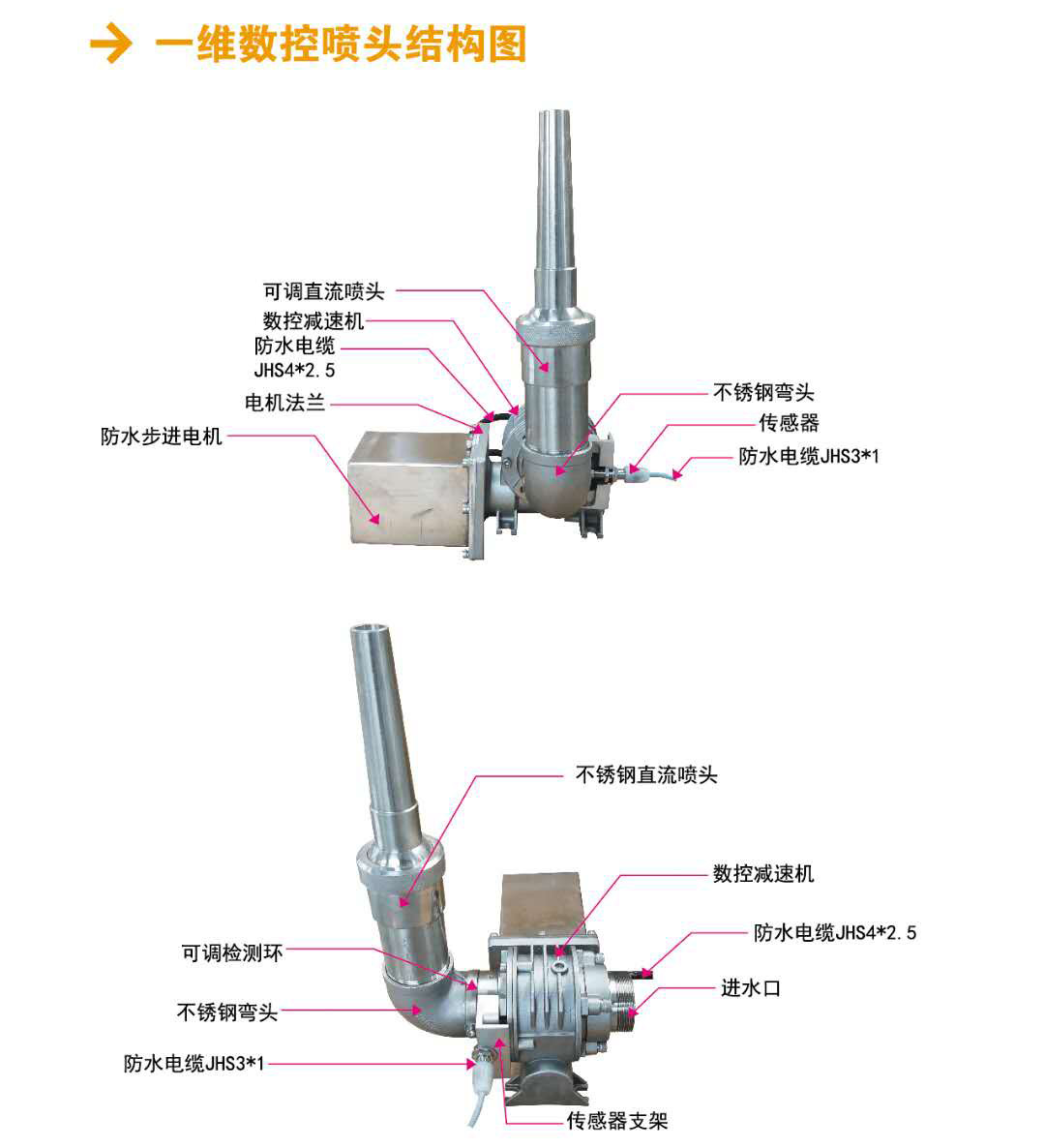

Fountain one-dimensional CNC nozzle stainless steel DN50 pinion reducer worm gear reducer

DN50 Product Description

DN50 fountain reducer is an upgraded product of DN040 reducer. The product upgrade also increases the range of motor power selection, output variables, and a wider range of uses.

DN50 Feature

The overall structure of DN50 continues DN40. The wheel core material of the box body is made of 304 stainless steel, the hollow wheel core is expanded, the size of the matching screw teeth is increased, and the movement of the water is increased smoothly.

DN50 Parameter

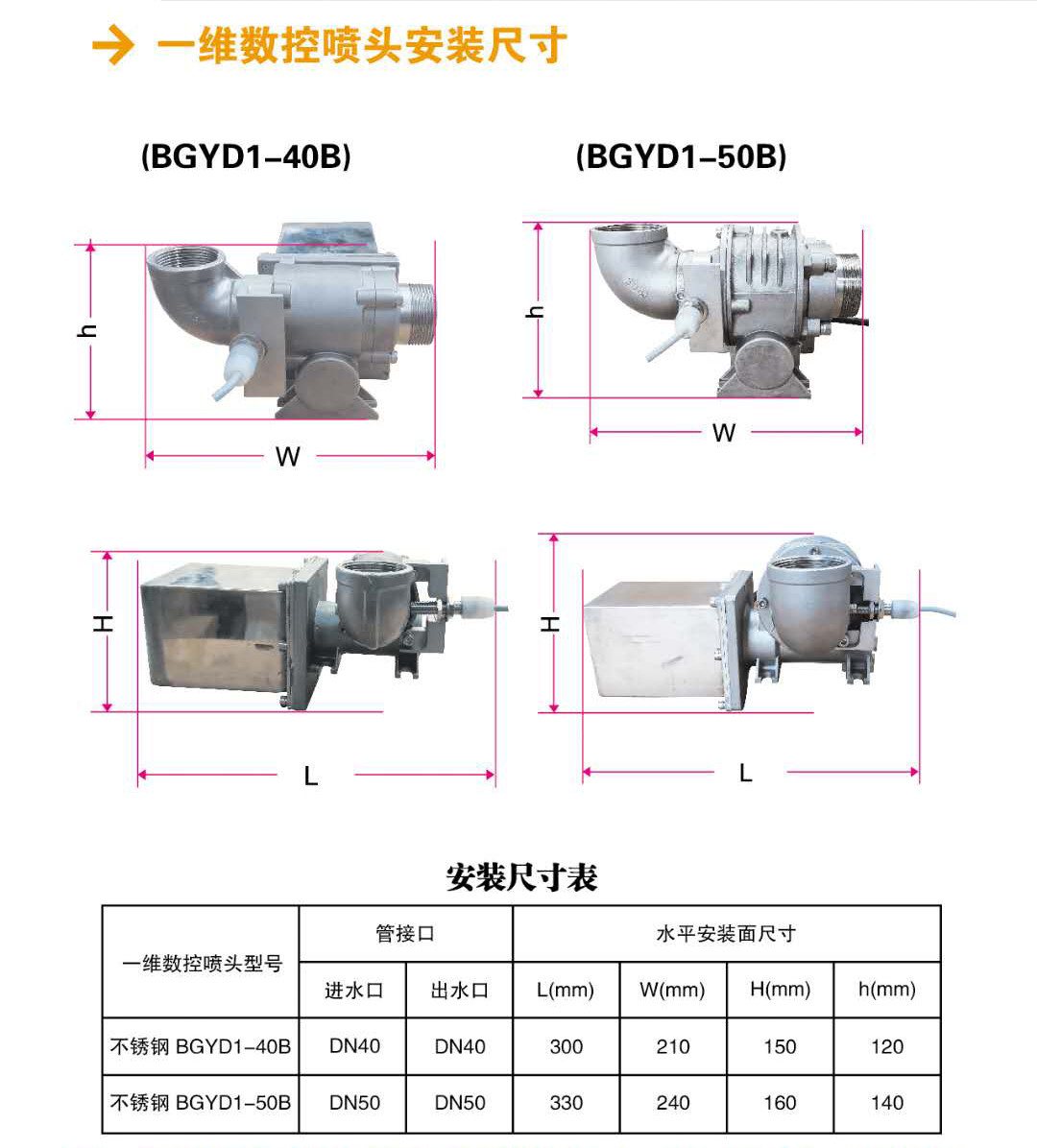

Ss304 DN50 Pinion Worm Reducer gearbox

Installation Size Table
One-Dimensional CNC Nozzle Model	Tube Interface		Horizontal Installation Surface Size
One-Dimensional CNC Nozzle Model	Water Intake	Outlet	L(mm)	W(mm)	H(mm)	h(mm)
stainless steel BGYD1-40B	DN40	DN40	300	210	150	120
stainless steel BGYD1-50B	DN50	DN50	330	240	160	140

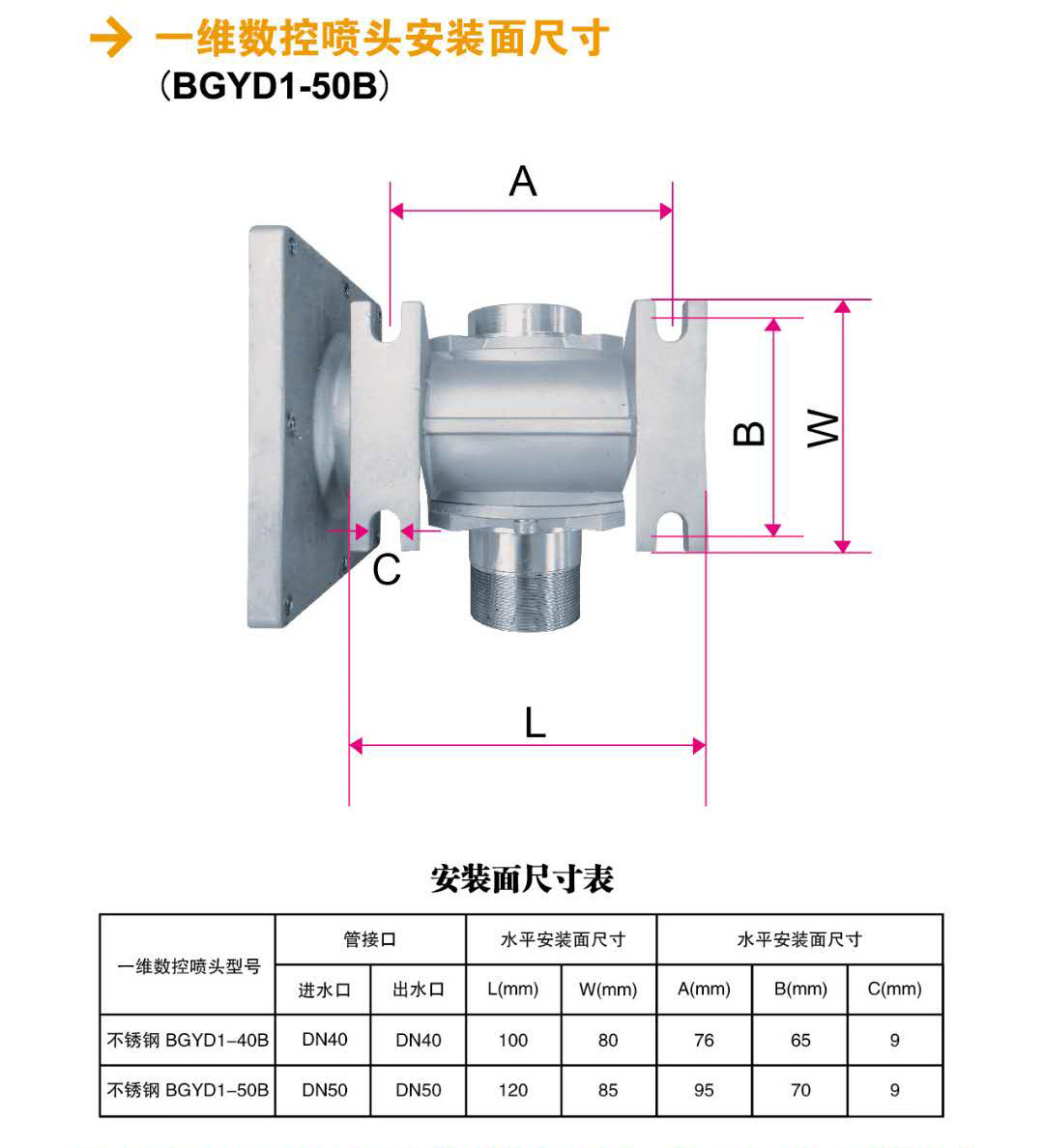

Ss304 DN50 Pinion Worm Reducer gearbox

Installation Size Table
One-Dimensional CNC Nozzle Model	Tube Interface		Horizontal Installation Surface Size		Horizontal Installation Surface Size
One-Dimensional CNC Nozzle Model	Water Intake	Outlet	L(mm)	W(mm)	A(mm)	B(mm)	C(mm)
stainless steel BGYD1-40B	DN40	DN40	100	80	78	65	9
stainless steel BGYD1-50B	DN50	DN50	120	85	95	70	9

DN50 Application Scope

1) Underwater working machinery

2) Marine machinery

3) Food machinery

4) Automatic machinery

DN50 Advantage

1) Stainless steel is more durable than aluminum alloy

2) Stainless steel is more beautiful than aluminum alloy

3) Stainless steel is superior to aluminum alloy

4) Stainless steel is more widely used than aluminum alloy
