VF030 304 stainless steel worm gear reducer reducer gearbox can be launched
VF030 Product Description
Vf030 is a stainless steel reducer tailored to customer requirements. According to the customer's usage, we put the input flange, box body and output flange together, which not only reduces the assembly workload, but also reduces the risk of oil leakage. So far, the customer is very satisfied.
VF030 Feature

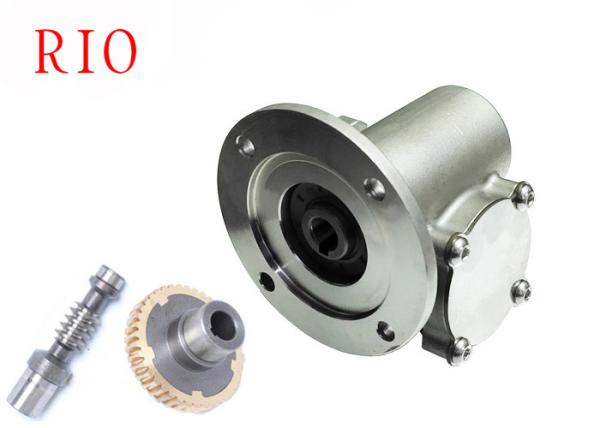

The Vf030 shell is made of 304 stainless steel, small and round in shape and easy to clean. The inside is composed of a worm wheel (covered by a stainless steel wheel core) and a worm (20CrMn), with smooth transmission and low noise.
VF030 Parameter
| Stainless Steel VF Series Worm Gear Reducer |
| Model | Speed Ratio | Enter Hole size(MM) | Output Hole size(MM) | Shell Material | Worm Gear Material | Worm Material | Output Shaft Material | Input Flange |
| VF30 | 5/7.5/10/15/20
25/30/40/50/60/80 | 9 11 | 14 | 304 | Stainless steel wheel
core covered with copper | 20CrMn | 304 | 63B14 |
| VF40 | 5/7.5/10/15/20/25
30/40/50/60/80/100 | 9 11 14 | 18 | 304 | Stainless steel wheel
core covered with copper | 20CrMn | 304 | 56B5/63B5/63B14
71B5/71B14 |
| VF50 | 5/7.5/10/15/20/25
30/40/50/60/70/80/100 | 11 14 19 | 25 | 304 | Stainless steel wheel
core covered with copper | 20CrMn | 304 | 63B5/71B5/71B14
80B5/80B14 |
| VF63 | 5/7.5/10/15/20/25
30/40/50/60/80/100 | 14 19 24 | 25 | 304 | Stainless steel wheel
core covered with copper | 20CrMn | 304 | 71B5/80B5/80B14
90B5/90B14 |
Product Use: Environmental protection, Underwater, Robots, Landscape, Fountain equipment, Food, Ceramics, Chemicals, Packaging,
Printing and Dyeing, Wood processing, Glass. |
| Input Flange(MM) |
| Model | P | M | N | D | Model | P | M | N | D | Model | P | M | N | D |
| 56B5 | 120 | 100 | 80 | 9 | 71B5 | 160 | 130 | 110 | 14 | 80B14 | 120 | 100 | 80 | 19 |
| 63B5 | 140 | 115 | 95 | 11 | 71B14 | 105 | 85 | 70 | 14 | 90B5 | 200 | 165 | 130 | 24 |
| 63B14 | 90 | 75 | 60 | 11 | 80B5 | 200 | 165 | 130 | 19 | 90B14 | 140 | 115 | 95 | 24 |
VF030 Application Scope
1) Underwater working machinery
2) Marine machinery
3) Food machinery
4) Automatic machinery
VF030 Advantage
1) Stainless steel is more durable than aluminum alloy
2) Stainless steel is more beautiful than aluminum alloy
3) Stainless steel is superior to aluminum alloy
4) Stainless steel is more widely used than aluminum alloy
Product Tags:
|
|

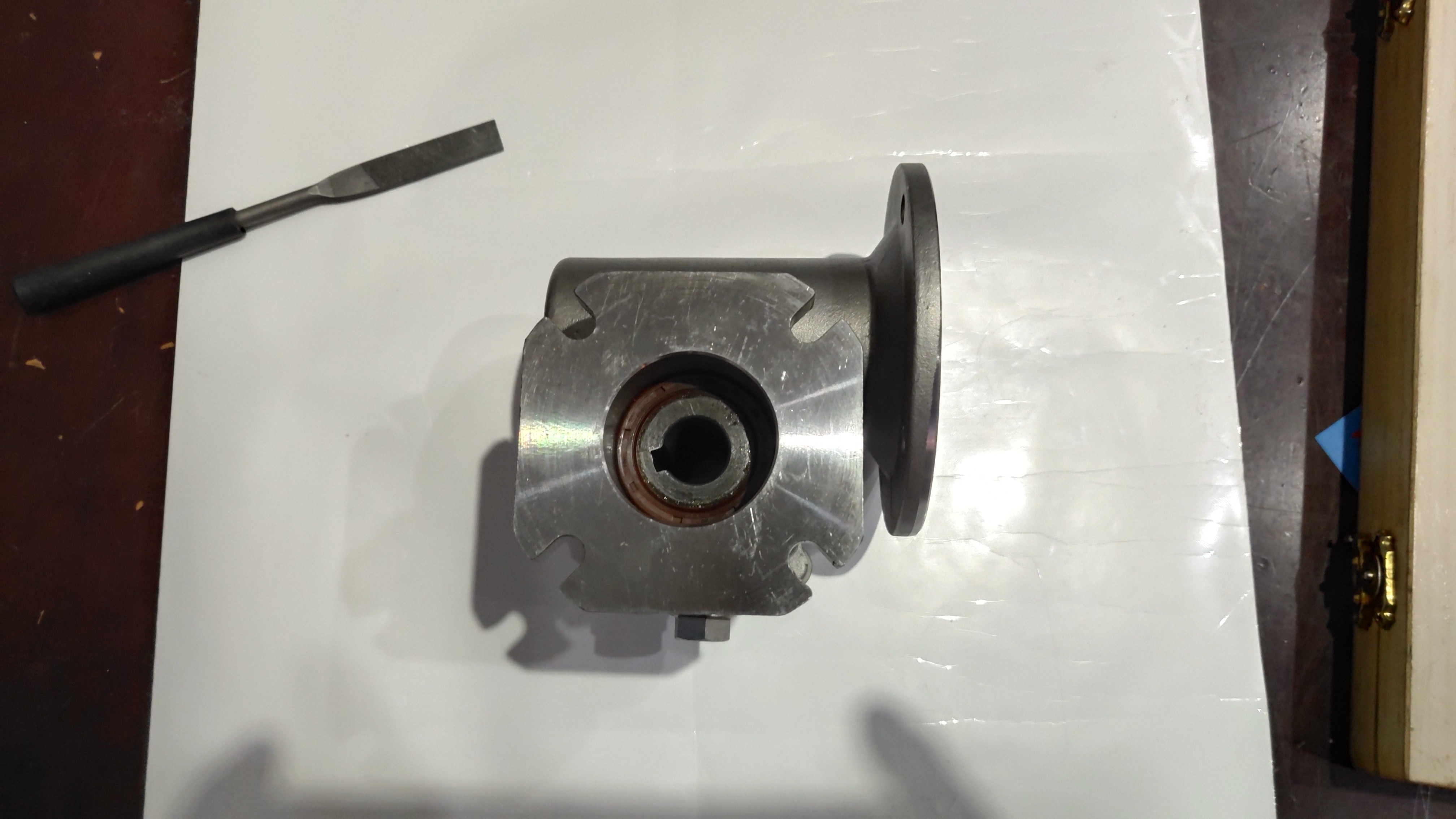

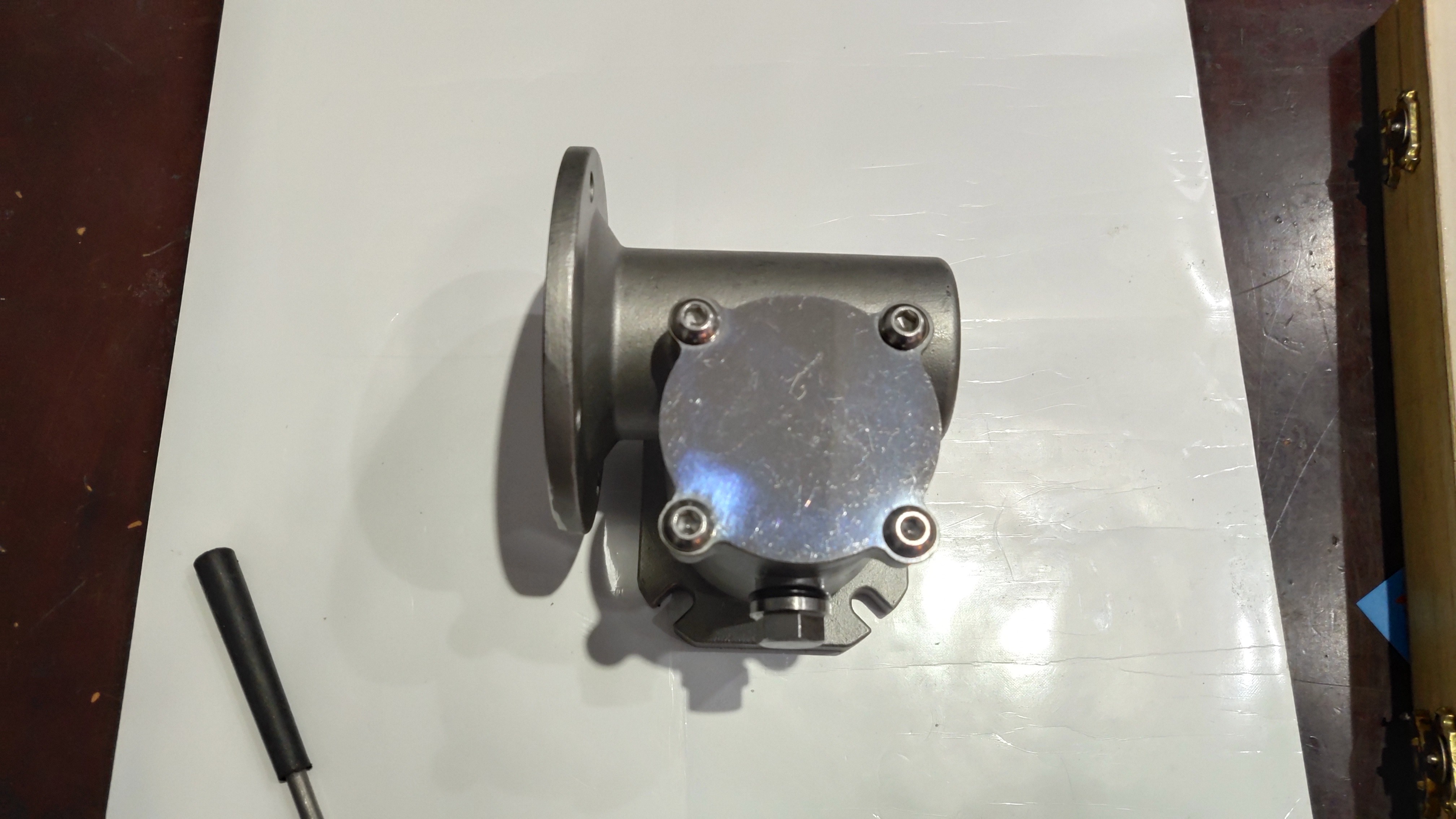

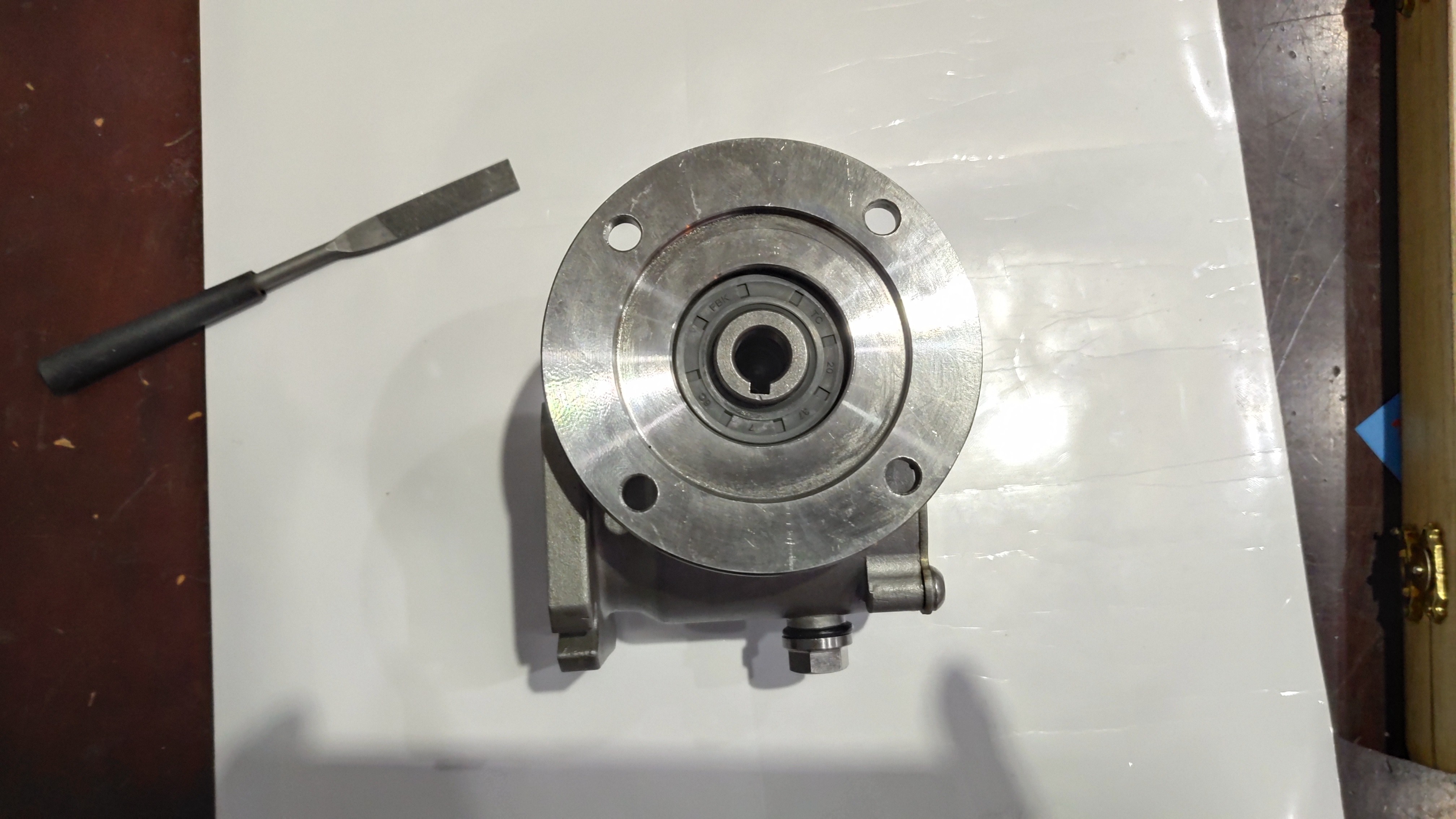

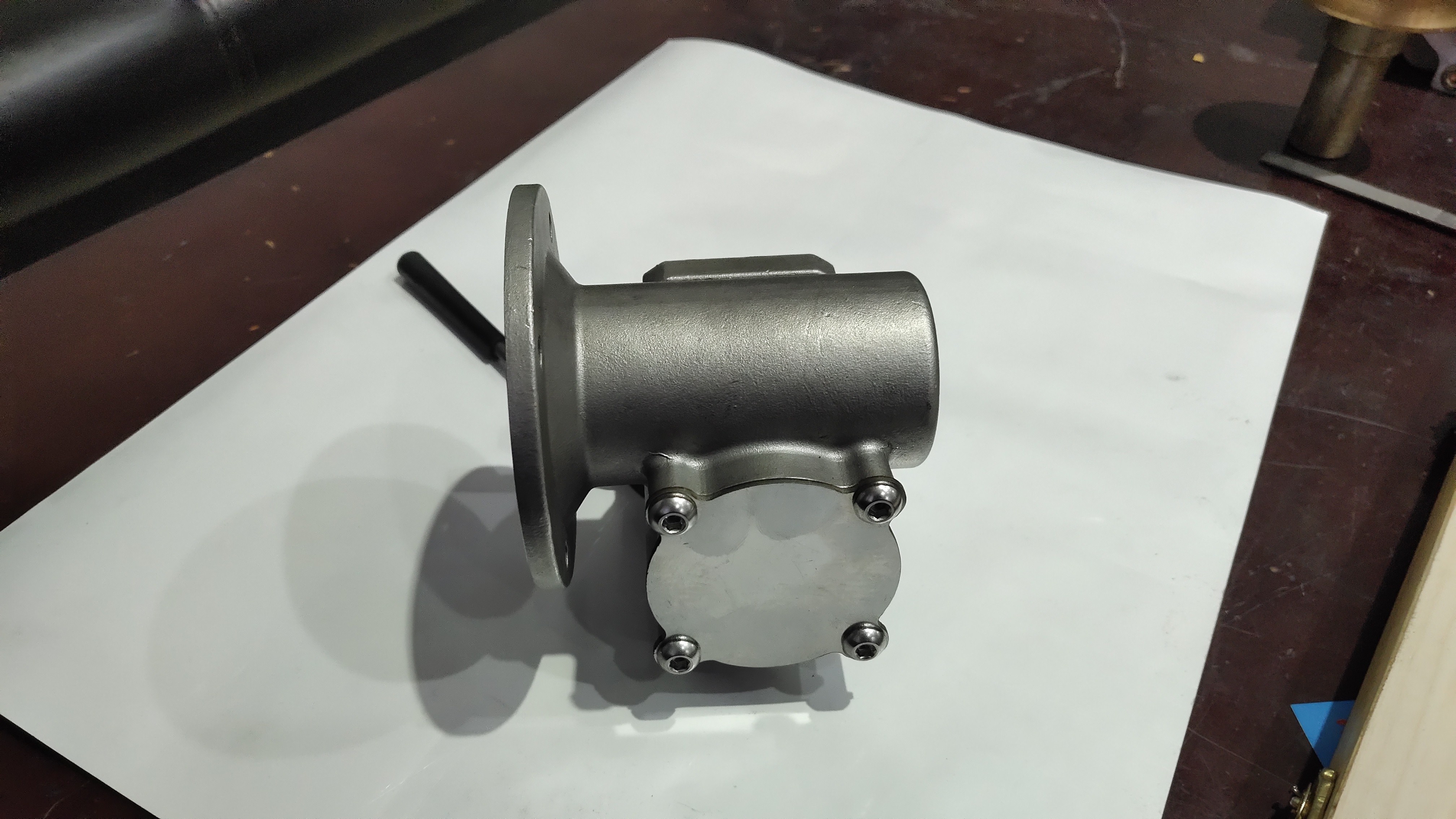

VF30 304 Stainless Steel Worm Gear Reducers Images
|
